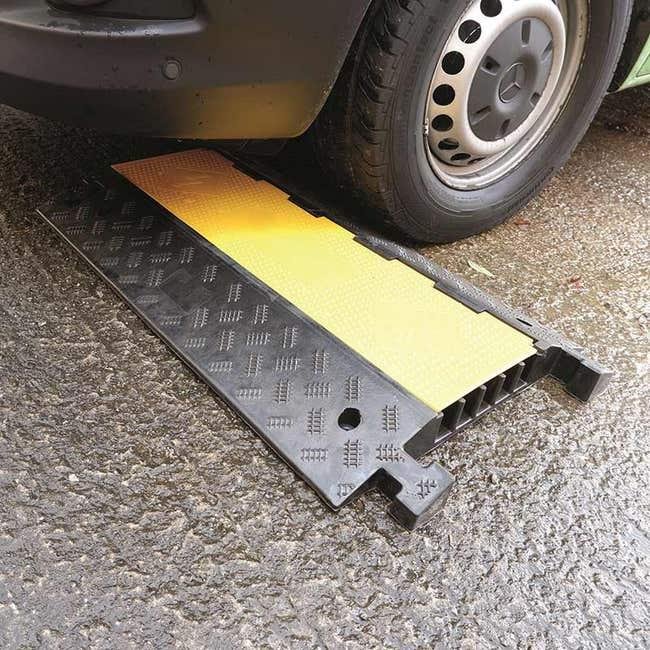

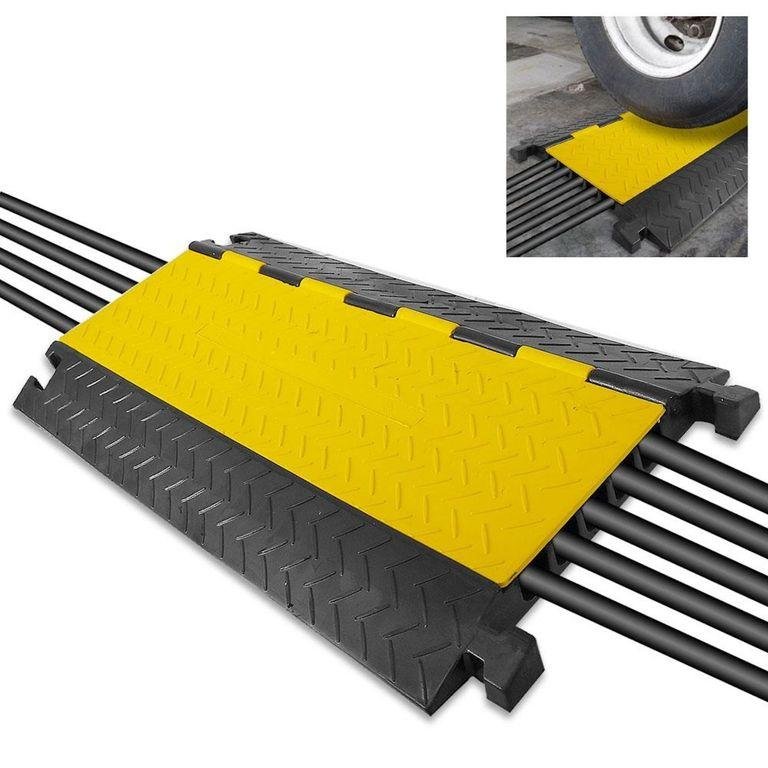

5-channel heavy-duty cable protector is designed to protect multiple electrical cables, communication cables, fiber optic cables, and hoses from damage caused by pedestrians, cars, trucks, forklifts, and other heavy vehicles. It is ideal for construction sites, industrial facilities, warehouses, events, airports, shopping malls, parking areas, and commercial buildings.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 5-Channel Heavy-Duty Cable Protector |
| Type | Heavy-Duty Modular Rubber Cable Protector Ramp |
| Material | High-strength recycled rubber base with high-impact PVC/TPR or polyurethane yellow lid |
| Color | Black Base with Yellow Hinged Cover |
| Number of Channels | 5 |
| Channel Size | Approx. 35 × 35 mm each (varies by model) |
| Overall Dimensions (L × W × H) | Approx. 900 × 500 × 55 mm |
| Weight | 14–18 kg per section |
| Load Capacity | Up to 20–40 tonnes (depending on model) |
| Cover Type | Hinged yellow lid |
| Surface Pattern | Anti-slip diamond tread |
| Operating Temperature | -40°C to +60°C |
