Technical Specifications
| Specification | Details |
|---|---|

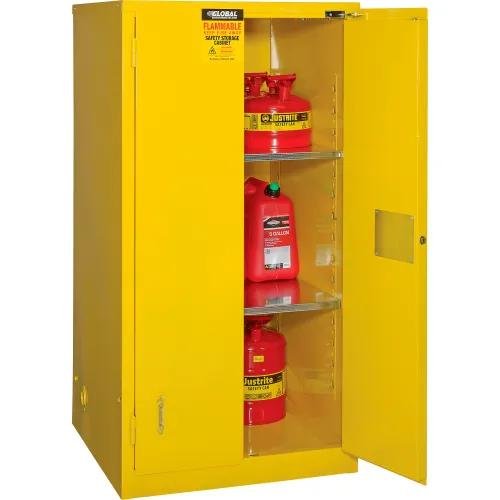

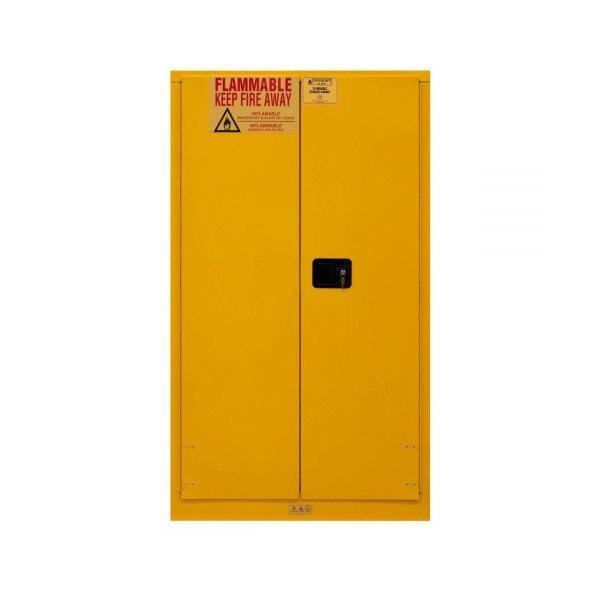

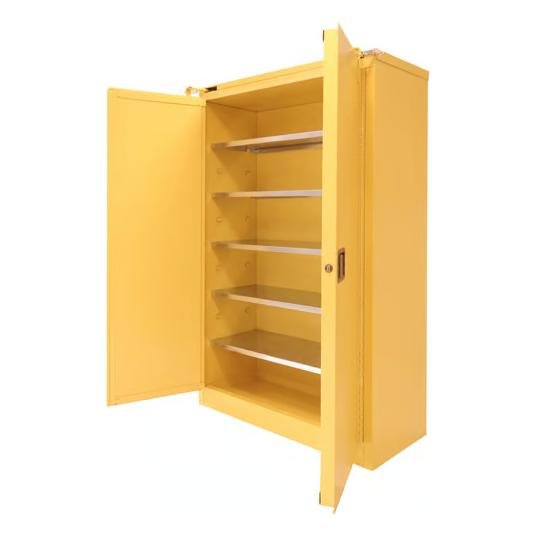

| Product Name | Flammable Safety Storage Cabinet |
| Capacity | 60 US Gallons / Approx. 227 Litres |
| Cabinet Type | Flammable Liquid Safety Cabinet |
| Material | Heavy-duty steel |
| Steel Thickness | 18 Gauge / Approx. 1 mm |
| Construction | Double-wall welded steel construction |
| Air Gap | Approx. 1.5 in / 38 mm between walls |
| External Dimensions | Approx. 65 H × 34 W × 34 D in |
| Metric Dimensions | Approx. 1651 H × 864 W × 864 D mm |
| Internal Dimensions | Approx. 60.5 H × 30.8 W × 30.3 D in |
| Doors | 2 doors |
| Door Type | Manual-close or self-closing, depending on model |
| Shelves | 2 adjustable shelves |
| Shelf Material | Steel |
| Shelf Depth | Approx. 29 in / 737 mm |
| Shelf Adjustment | Adjustable shelf positions |
| Finish | Chemical/corrosion-resistant powder coating |
| Standard Colour | Safety Yellow |
| Locking System | Lockable recessed handle |
| Door Sill | Approx. 2 in / 51 mm leak-proof raised sill |
| Ventilation | Two 2-in vents with fire baffles/caps on typical models |
| Fire Protection | Double-wall construction with insulating air space |
| Grounding | Grounding connection provided on applicable models |
| Approval | FM Approved on specified models |
| Standards | OSHA / NFPA 30 compliance on specified models |
Key Features
- 60-gallon / 227-litre storage capacity
- Heavy-duty 18-gauge steel construction
- Double-wall construction with approximately 1.5-inch air space
- Two adjustable steel shelves
- Leak-proof raised bottom sill to contain accidental spills
- Lockable doors for controlled access
- Corrosion-resistant powder-coated finish
- Safety-yellow finish for easy identification
- Flame/fire-resistant cabinet construction
- Optional self-closing doors with fusible-link mechanism
- Two ventilation ports with fire baffles/caps on typical models
- Grounding provision for appropriate installations
- Suitable for storing approved containers of flammable liquids
- FM approval and OSHA/NFPA 30 compliance available on specified models.
Self-Closing Door Option
For a self-closing version, the doors can automatically close during a fire condition. On representative models, fusible links release at approximately 165°F (74°C), allowing the doors to close and latch.
Typical Applications
- Oil & gas facilities
- Chemical storage areas
- Workshops and maintenance departments
- Paint and solvent storage
- Manufacturing plants
- Laboratories
- Construction sites
- Automotive workshops
- MRO stores
- Industrial warehouses
Recommended catalogue description:
60 Gallon Flammable Safety Cabinet, 2-Door, Double-Wall 18-Gauge Steel, 2 Adjustable Shelves, Lockable, Leak-Proof Sill, Yellow Powder-Coated Finish, FM Approved / OSHA & NFPA 30 Compliant.
