Technical Specifications
| Specification | Standard / Typical Specification |
|---|---|

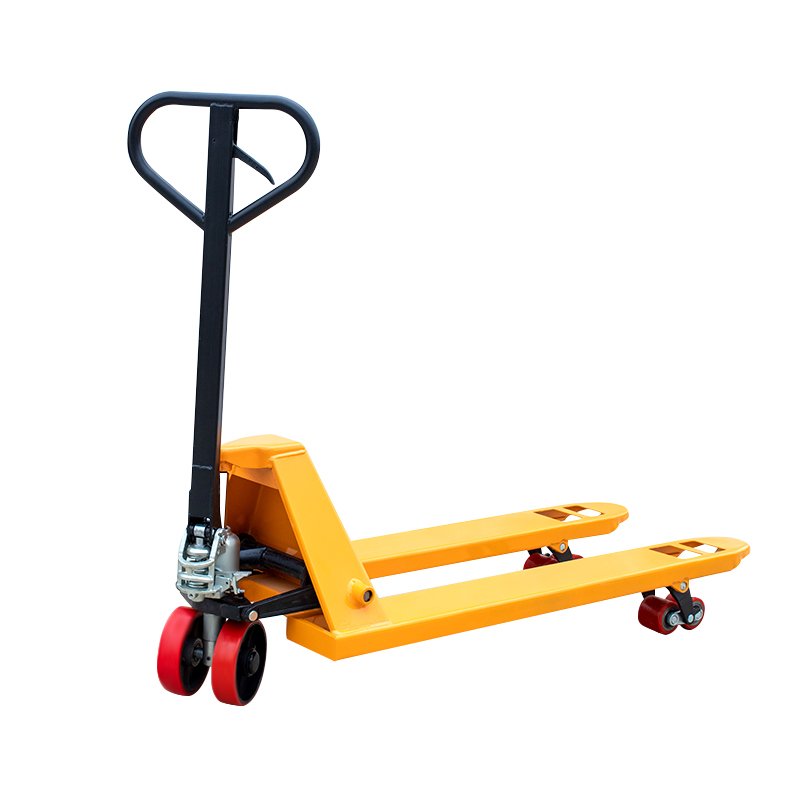

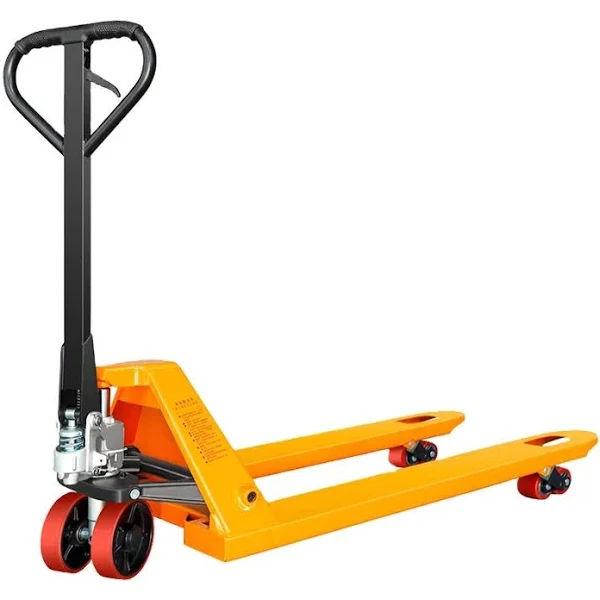

| Product Name | Hand Pallet Truck / Manual Pallet Jack |
| Operation | Manual / Hydraulic |
| Load Capacity | 2,000–3,000 kg |
| Recommended Standard Capacity | 2,500 kg |
| Fork Length | 1,150 mm |
| Fork Width – Individual | Approx. 160 mm |
| Overall Fork Width | 520–685 mm |
| Fork Height – Lowered | Approx. 75–85 mm |
| Maximum Fork Height | Approx. 195–200 mm |
| Steering Angle | Approx. 200°–210° |
| Steering Wheel | 180–200 mm diameter |
| Fork Roller | 80–80/70 mm typical |
| Steering Wheel Material | PU / Rubber / Nylon |
| Fork Roller Material | PU / Nylon |
| Frame Material | Heavy-duty carbon steel |
| Handle Material | Steel with ergonomic grip |
| Pump Type | Hydraulic hand pump |
| Hydraulic Oil | Hydraulic oil |
| Lifting Method | Manual hydraulic pumping |
| Lowering Method | Manual control lever |
| Minimum Turning Radius | Approx. 1,250–1,350 mm |
| Service Brake | Usually not provided |
| Finish | Powder-coated / painted steel |
| Fork Construction | Reinforced welded steel |
| Application | Warehouses, factories, logistics, workshops, stores |
| Pallet Type | Standard 2-way / compatible pallets depending on fork dimensions |
Key Features
- Heavy-duty steel construction for industrial applications.
- Hydraulic hand pump provides smooth and reliable lifting.
- Typical 2.5-ton load capacity for general warehouse operations.
- Reinforced forks designed for palletized loads.
- Ergonomic handle with integrated lifting, neutral and lowering controls.
- Durable polyurethane or nylon wheels available.
- Low-profile forks suitable for standard pallets.
- Smooth steering for easy maneuverability.
- Powder-coated surface provides protection against corrosion and wear.
- Low maintenance and simple mechanical construction.
- Suitable for warehouses, factories, logistics centers and MRO facilities.
- Available with different fork lengths, widths and wheel configurations.
Typical Dimensions
Fork Length: 1,150 mm
Overall Width: 540–685 mm
Lowered Fork Height: 75–85 mm
Raised Fork Height: 195–200 mm
Capacity: 2,500 kg
Steering Wheel: Ø180–200 mm
Load Rollers: Ø70–80 mm
Note: Exact dimensions, wheel materials, load capacity and specifications vary by manufacturer and model. For a quotation or technical submittal, the manufacturer/model number should be specified so the datasheet matches the supplied unit.
