| Specification | Details |
|---|---|

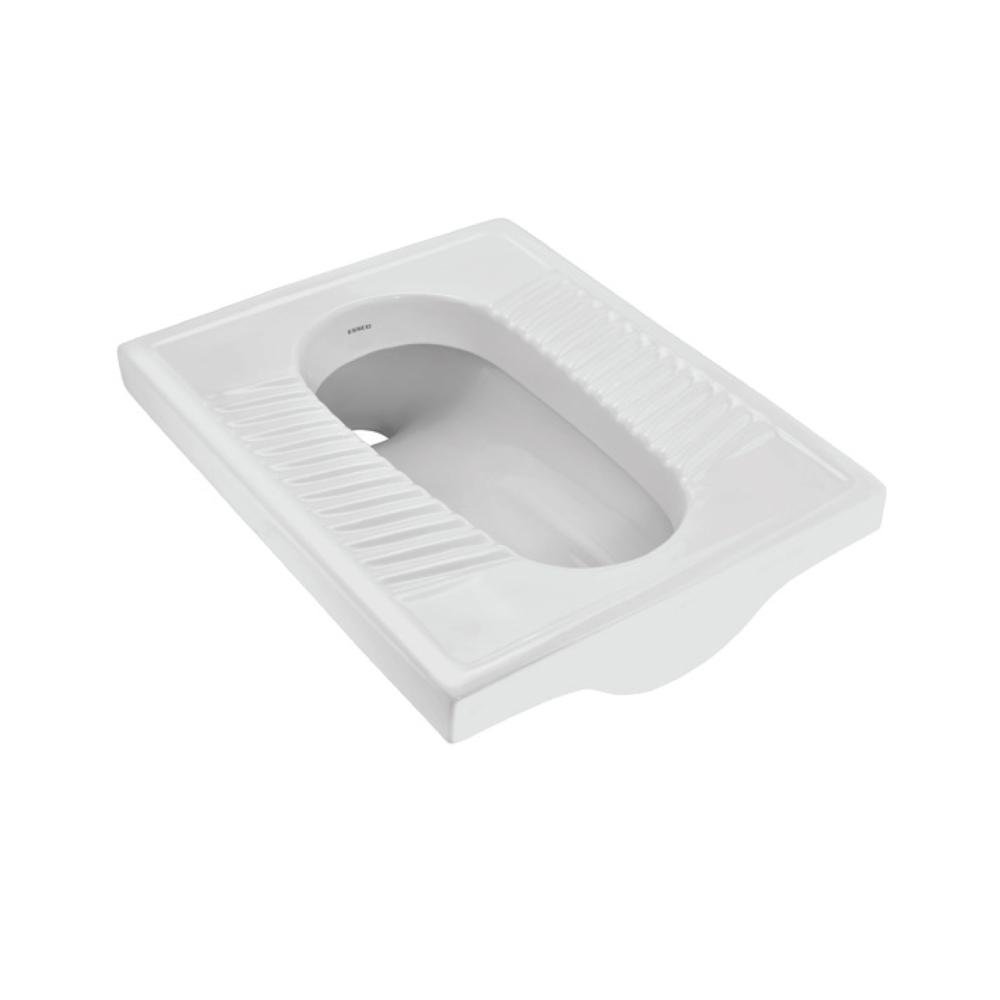

| Product Name | Squatting Pan / Squat Toilet Pan |
| Type | Indian Type WC / Floor-Mounted Squatting Pan |
| Material | High-quality vitreous china / sanitary ceramic |
| Surface Finish | Smooth, hygienic, easy-clean glazed finish |
| Color | White / Alpine White |
| Pattern | Long Pattern / Orissa Pattern / Integrated Type |
| Typical Size | 580 × 440 mm (Orissa Pattern) |
| Other Standard Size | 630 × 450 mm |
| Height | Approx. 300 ± 10 mm for 580 mm pattern |
| Flushing Type | Wash-down flushing |
| Flushing Rim | Integral flushing rim, self-draining |
| Flush Inlet | Rear/front inlet depending on design |
| Inlet Diameter | Approx. 50 mm |
| Outlet Diameter | Approx. 80 mm internal / 102 mm external for standard patterns |
| Trap | P-Trap or S-Trap |
| Trap Connection | Typically 100 mm sanitary trap |
| Water Seal | Minimum approximately 50 mm for integrated designs; traditional specifications may vary by trap/design |
| Footrests | Integral or separate ceramic footrests |
| Footrest Length | Approx. 310 ± 10 mm for Orissa pattern |
| Pan Bottom Slope | Approx. 15° in standard IS-pattern dimensions |
| Installation | Floor-mounted / recessed into finished floor |
| Flushing Connection | Compatible with flush cistern or suitable flush valve |
| Application | Residential, commercial, industrial, schools, hospitals, public toilets and construction projects |
| Maintenance | Low maintenance; smooth glazed surface facilitates cleaning |
| Standard Reference | IS 2556 requirements for vitreous sanitary appliances, as applicable to the selected pan type |
The CPWD specification lists 580 and 630 mm Long Pattern and 580 × 440 mm / 630 × 450 mm Orissa Pattern configurations, with a 15° bottom slope and specified inlet/outlet dimensions.
For a quotation/catalogue, you can specify:
“White Vitreous China Squatting Pan, Orissa Pattern, 580 × 440 mm, integral flushing rim, ceramic footrests, suitable P/S trap connection, smooth glazed internal surface, complete with necessary fittings.
