Product Description

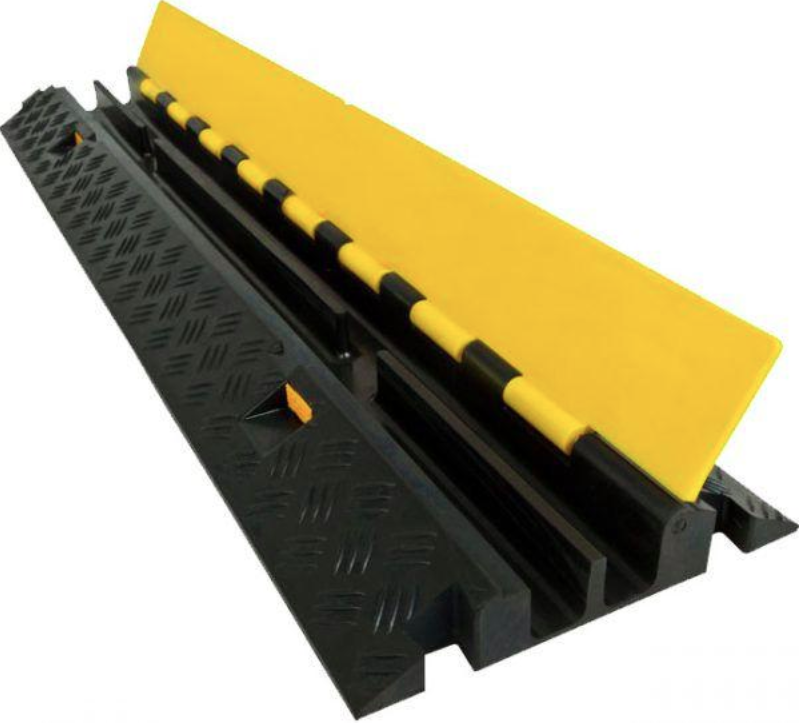

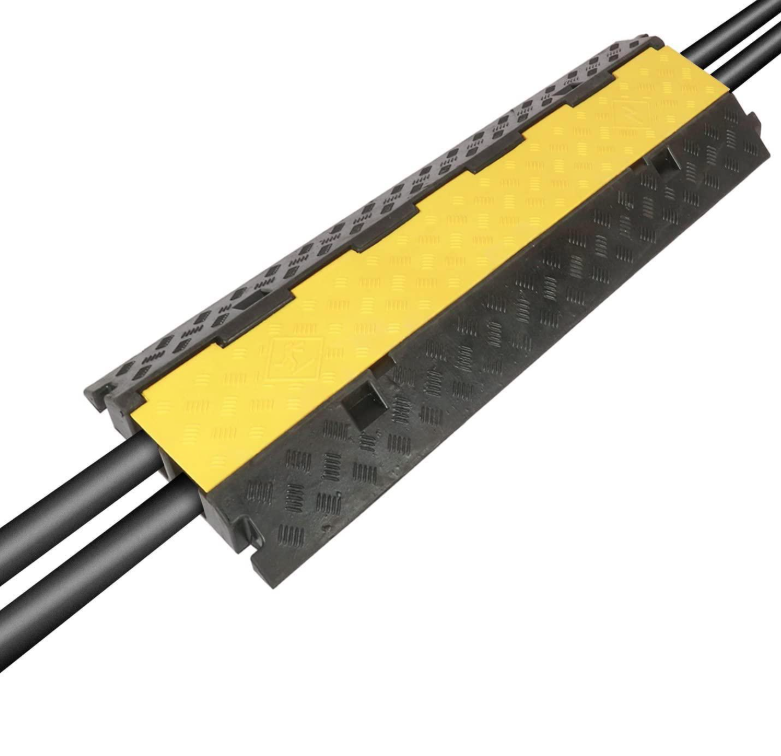

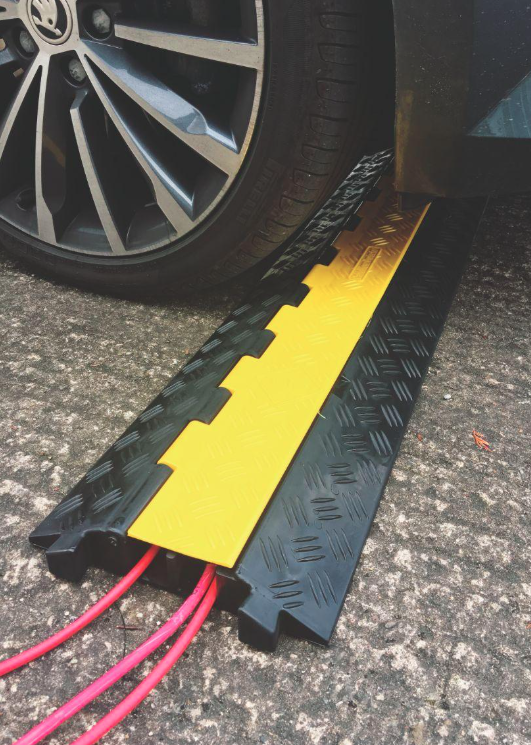

A 2-channel heavy-duty cable protector is a robust cable management ramp designed to protect electrical cables, power cords, water hoses, and communication cables from damage caused by pedestrians and vehicle traffic. It is commonly used in construction sites, warehouses, industrial facilities, events, parking areas, and swimming pool maintenance areas.
Technical Specifications
| Parameter | Specification |
| Product Name | 2-Channel Heavy Duty Cable Protector |
| Type | Cable Protection Ramp |
| Number of Channels | 2 |
| Material | High-strength recycled rubber base with UV-resistant PVC/TPU or polypropylene yellow lid |
| Base Color | Black |
| Lid Color | Yellow (high visibility) |
| Overall Length | 900–1000 mm |
| Overall Width | 240–250 mm |
| Overall Height | 45–55 mm |
| Channel Size | Approx. 30 × 30 mm to 35 × 35 mm each |
| Number of Cable Channels | 2 |
| Load Capacity | Up to 20 tonnes (depending on model) |
| Operating Temperature | -20°C to +60°C |
| Surface Finish | Anti-slip textured surface |
| Lid Type | Hinged top-opening cover |
| Visibility | High-visibility yellow safety lid |
| UV Resistance | Yes |
| Water Resistance | Yes |
| Chemical Resistance | Resistant to oil, grease, moisture, and most common chemicals |
| Connection | Interlocking male/female connectors for extending multiple units |
| Installation | Portable; no permanent fixing required (optional anchoring available) |
Material Properties
- Heavy-duty recycled rubber construction
- Reinforced impact-resistant yellow cover
- Corrosion resistant
- Weather resistant
- UV stabilized for outdoor use
- Suitable for indoor and outdoor applicationsAdvantages
- Heavy-duty construction
- Long service life
- Easy cable access
- High load capacity
- Excellent visibility
- Weatherproof
- Modular connection system
- Suitable for repeated use
- Protects cables and reduces accident risks
- This specification is suitable for procurement, tender, and BOQ documentation for a 2-channel heavy-duty cable protector in the UAE and other commercial or industrial applications.
